How to Attach Your Mount'n Mover: Step 5
Insert the Post into the Wheelchair Bracket
OVERVIEW | STEP 1 | STEP 2 | STEP 3 | STEP 4 | STEP 5 | STEP 6 | STEP 7 | STEP 8
To attach the mount to the wheelchair, orient the Post so the slot on the Post is aligned with the slot on the Wheelchair Bracket clamp. Slide the Post into the wheelchair bracket and clamp it with the quick-release lever.
Tips:
- The mount should attach to the top of the post, unless it is a Double Decker.
- A long post may interfere with casters or run into the base.
- The longer the post, the more play in the system.
Post Alignment
The post is correctly aligned when the post and clamp slots are aligned.
VIDEO: Attaching the Link Cube to the Post

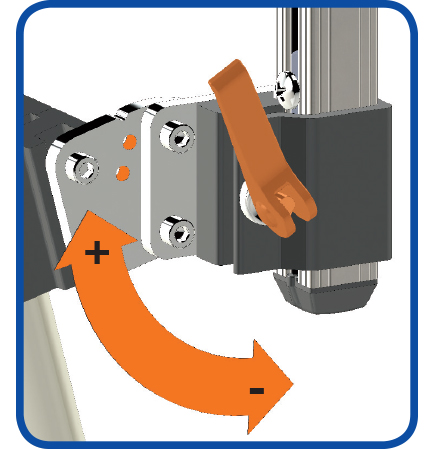

Clamp Pressure
Wheelchair bracket clamp pressure should be set so that, when clamped, post is held tightly and securely.

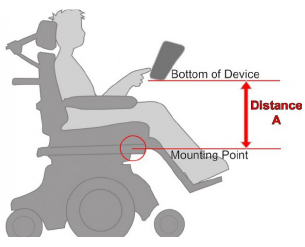

Post Height
Post height set screw ensures repeatable height and safety.
Note: If you are installing a Simple Mount, you are finished!
