Helio A6

Easy Mover Dual Arm mounted to Helio A6
showing 1-1/4 inch collar clamp placement
1-1/4" Collar Clamps

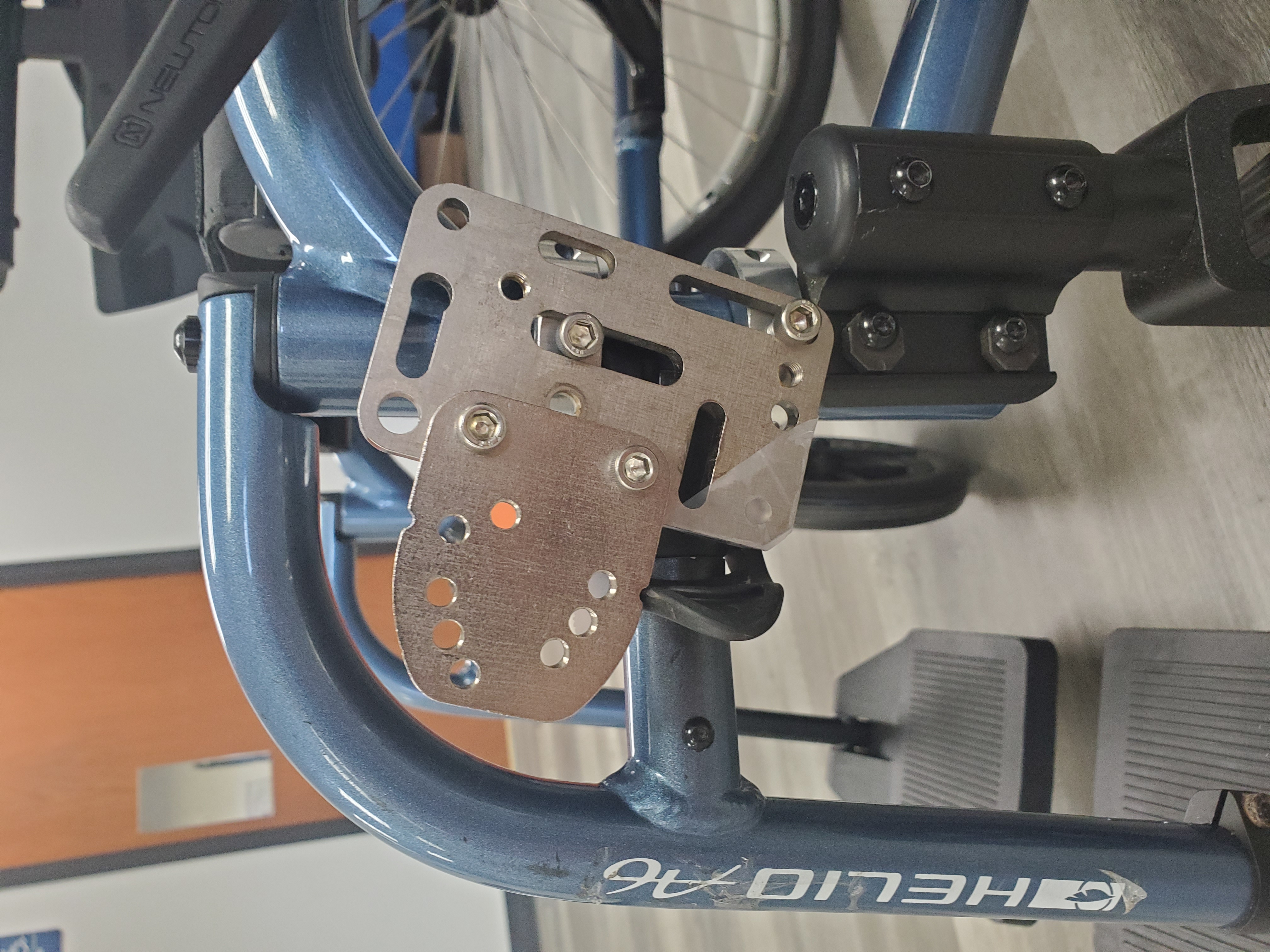

AP4 attached to collar clamps, AAP attached to AP4

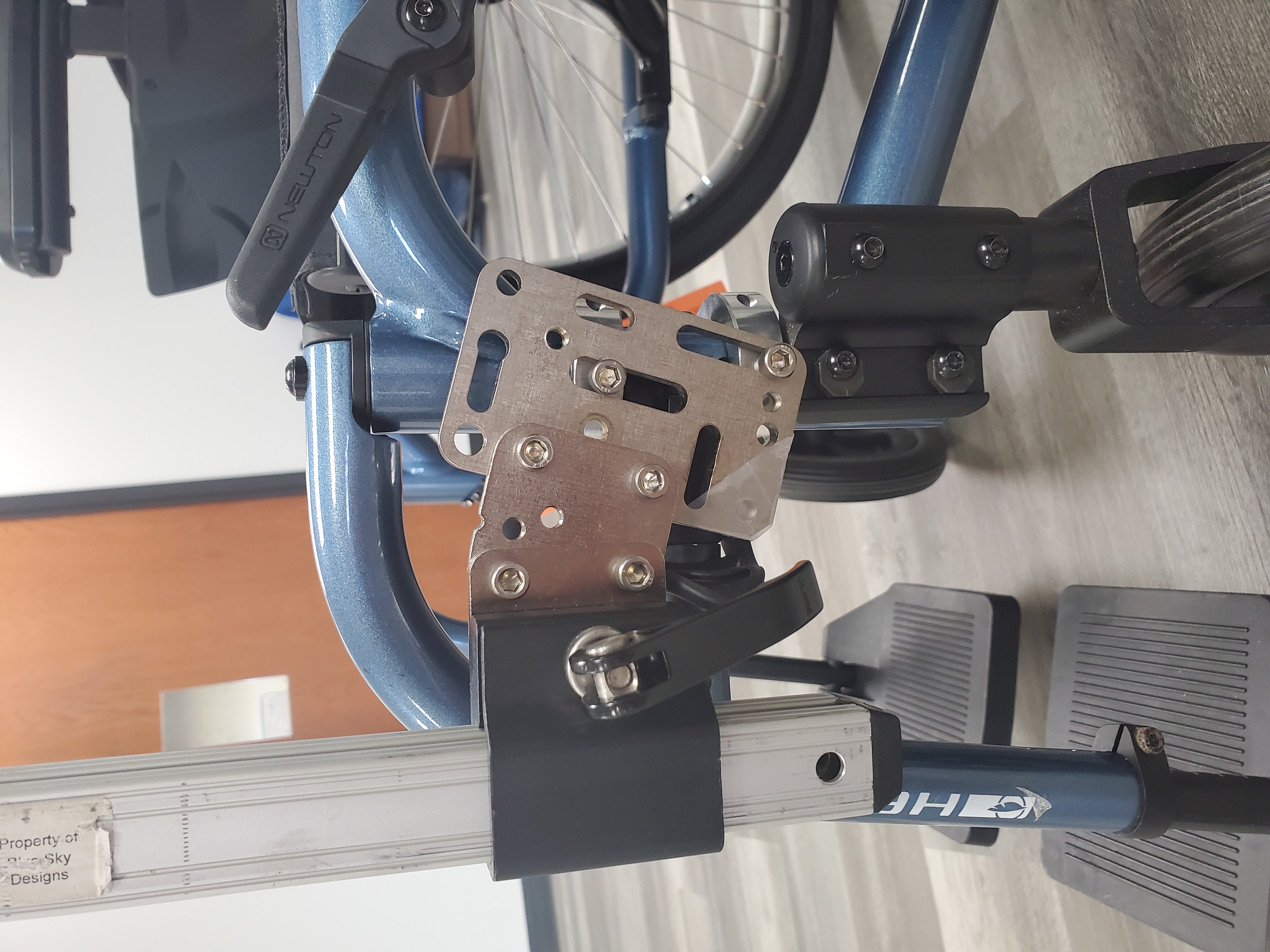

WB2 (post clamp) attached to WC-AAP
Easy Mover with tray attached

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

The Helio A6 has 1- 1/4 inch tube frame on the main frame.  The foot hanger tubes are 1".  Use two 1-1/4 inch collar clamps and span them with the WC-AP4 plate.  Attach the WC-AAP plate to the AP4 plate and then attach the WB2 (post clamp ) to the WC-AAP plate.  Find the correct hole spacing on the AAP plate so the post can be vertical.  NOTE: In this configuration the foot hanger cannot be removed .
