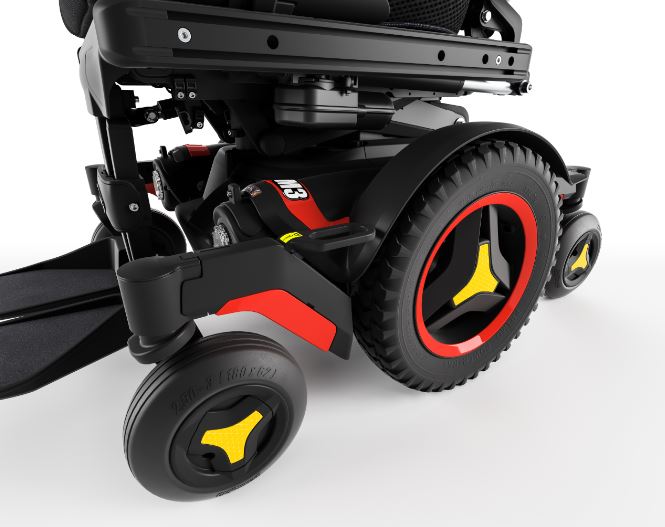

M3 Corpus and M300

(X2) WC_AP2    WB2

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

Preferred approach: When the Corpus has a Unitrack system, an Adapter Plate 4 is attached with 4 bolts and 4 square nuts in the track. Offsets are used to avoid armrests, footrests and position the Wheelchair Bracket as needed
