Argon/Helium

Quickie Argon, with a 1 1/8 inch round tube frame. Attach using Collar Clamps and an Adapter Plate. Position so the Plate is near-vertical, or attach to the upright tube and the one going to the caster.
Attach using a Bridge Clamp. Helium requires 1 1/4" Collar Clamps.

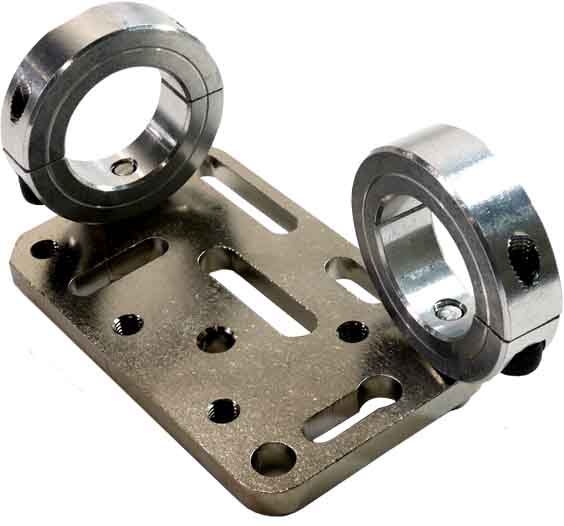

Collar clamps with AP4 as bridge

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

Argon attachment:

Attach using a Bridge clamp with Collar clamps and an Adapter Plate (WC-AP4 or AP2). Attach to a section of the tube so the post is vertical, or can be brought to vertical using an Angle Adjustment Plate. An alternate position would be to put one Collar Clamp on the vertical tube, and one on the tube going to the caster.

  • Argon uses 1 1/8" Collar clamps
  • Helium uses 1 1/4" Collar clamps

Recommended mounting hardware:

Solid Wheelchair Bracket (WB2)
Collar Clamp (WC-COLLAR) (WC-COLLAR-75, WC-COLLAR-875, WC-COLLAR-1, WC-COLLAR-1125, WC-COLLAR-30, WC-COLLAR-1250, WC-COLLAR-1375, WC-COLLAR-150)
Adapter Plate 4 (WC-AP4)
Angle Adjustment Plate (WC-AAP)
Add products to quote

Installation support:

Round tubes - Bridge Clamps, Round Clamps, and Collar Clamps

How to mount:

Helium attachment:

Attach using a Bridge clamp with Collar clamps and an Adapter Plate (WC-AP4 or AP2). Attach to a section of the tube so the post is vertical, or can be brought to vertical using an Angle Adjustment Plate. An alternate position would be to put one Collar Clamp on the vertical tube, and one on the tube going to the caster.

  • Argon uses 1 1/8" Collar clamps
  • Helium uses 1 1/4" Collar clamps

Recommended mounting hardware:

Solid Wheelchair Bracket (WB2)
Collar Clamp (WC-COLLAR) (WC-COLLAR-75, WC-COLLAR-875, WC-COLLAR-1, WC-COLLAR-1125, WC-COLLAR-30, WC-COLLAR-1250, WC-COLLAR-1375, WC-COLLAR-150)
Adapter Plate 4 (WC-AP4)
Angle Adjustment Plate (WC-AAP)
Add products to quote

Installation support:

Round tubes - Bridge Clamps, Round Clamps, and Collar Clamps
