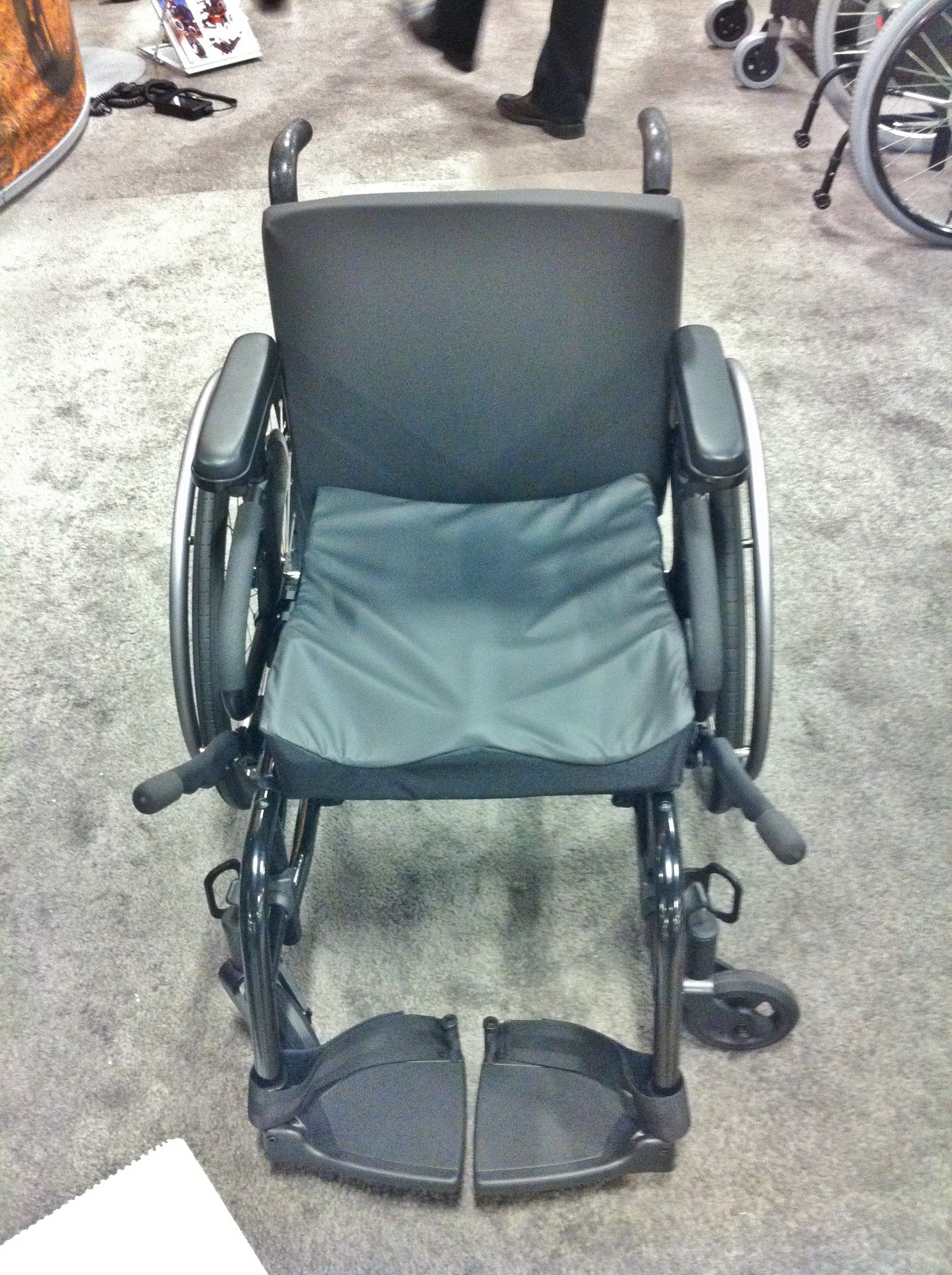

Qxi Ultralight

Attach using a Bridge Clamp, on the "J" and the vertical or horizontal tube section. Use an L-Angle to offset it and avoid interfering with brake actuation.

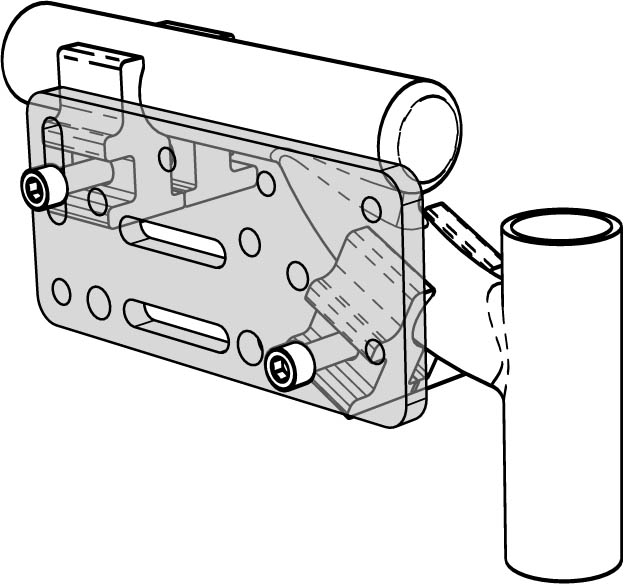

Attach to the horizontal section and "J" curve.

Bridge clamps sizes 1" and 7/8" with a WC-AP2, WC-LAE, and WB2

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

Get around obstacles such as trays, brakes, footrests and armrests
Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

L-Angled Extension Plate (WC-LAE)

Adapter Plate 2 (WC-AP2)

Adapter Plate 4 (WC-AP4)

Angle Adjustment Plate (WC-AAP)

How to mount:

Attach using a Bridge clamp, with 1" clamp on the horizontal, and the 7/8" on the "swoop". Use an Adapter Plate 2 to create the Bridge. Use an L-Angle Extension Plate to locate the Wheelchair Bracket in the best position relative to the brake and footrest.
