Crocodile Walker (Etac)

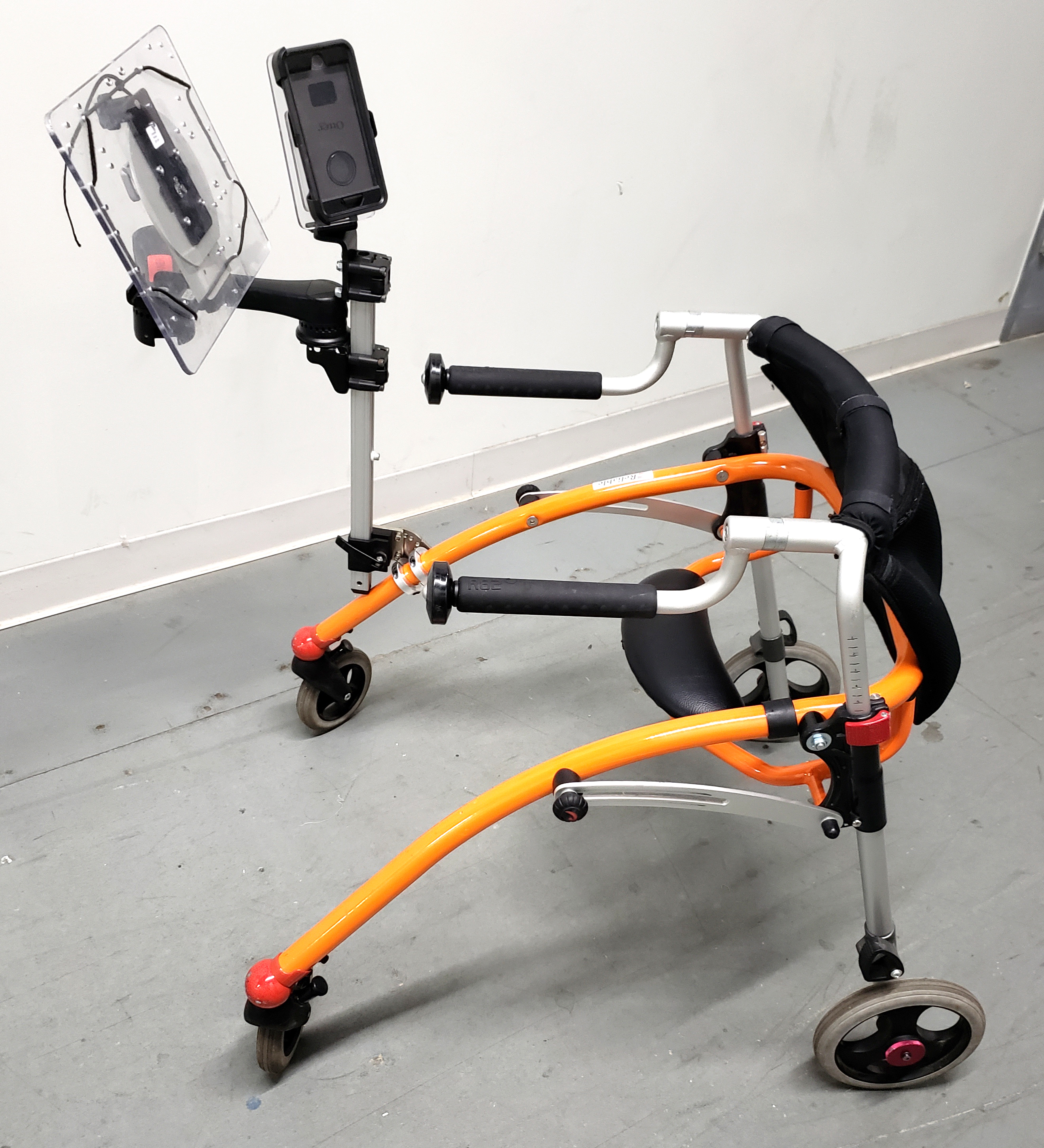

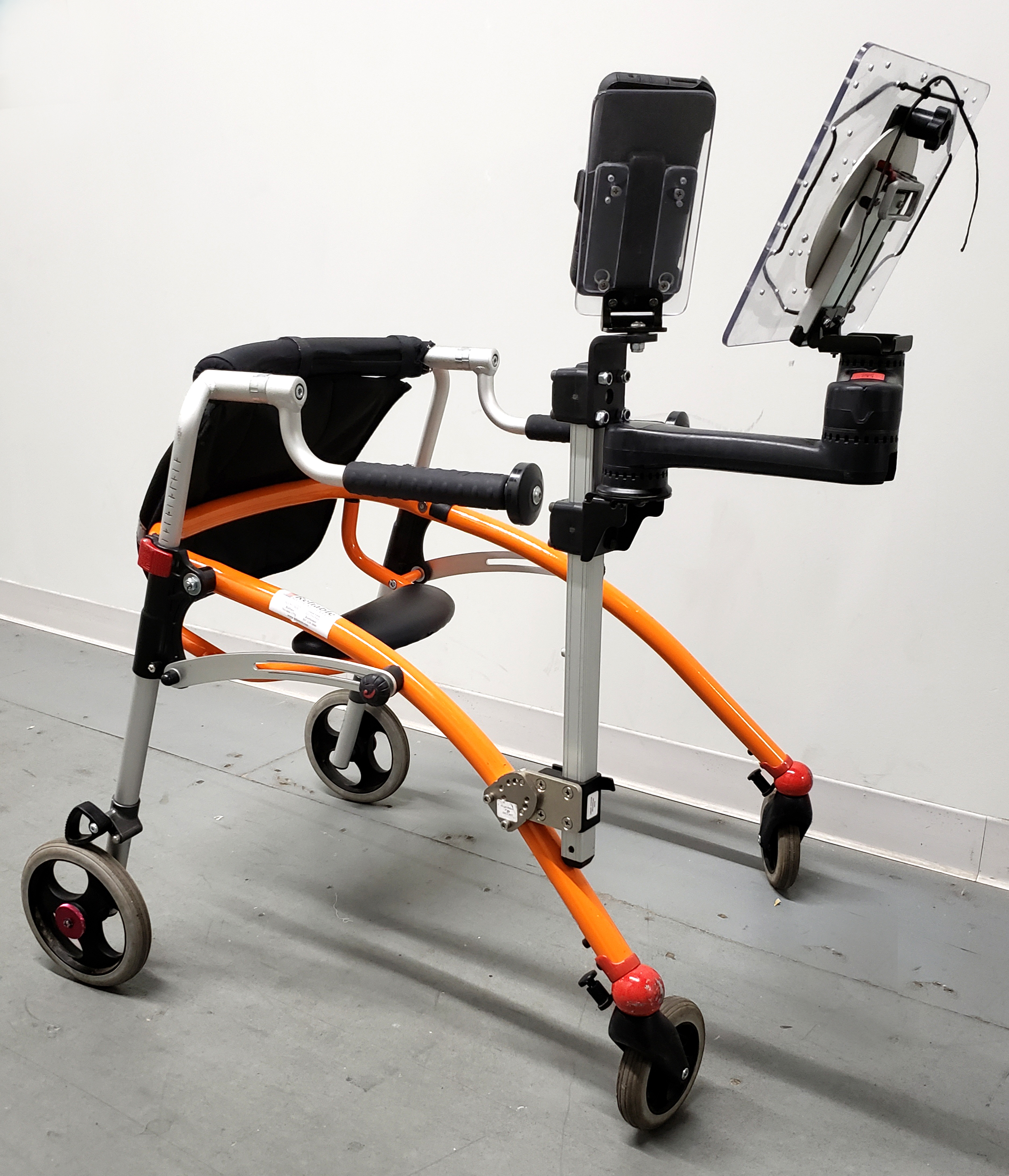

R82 Crocodile Walker side view double decker single arm and phone

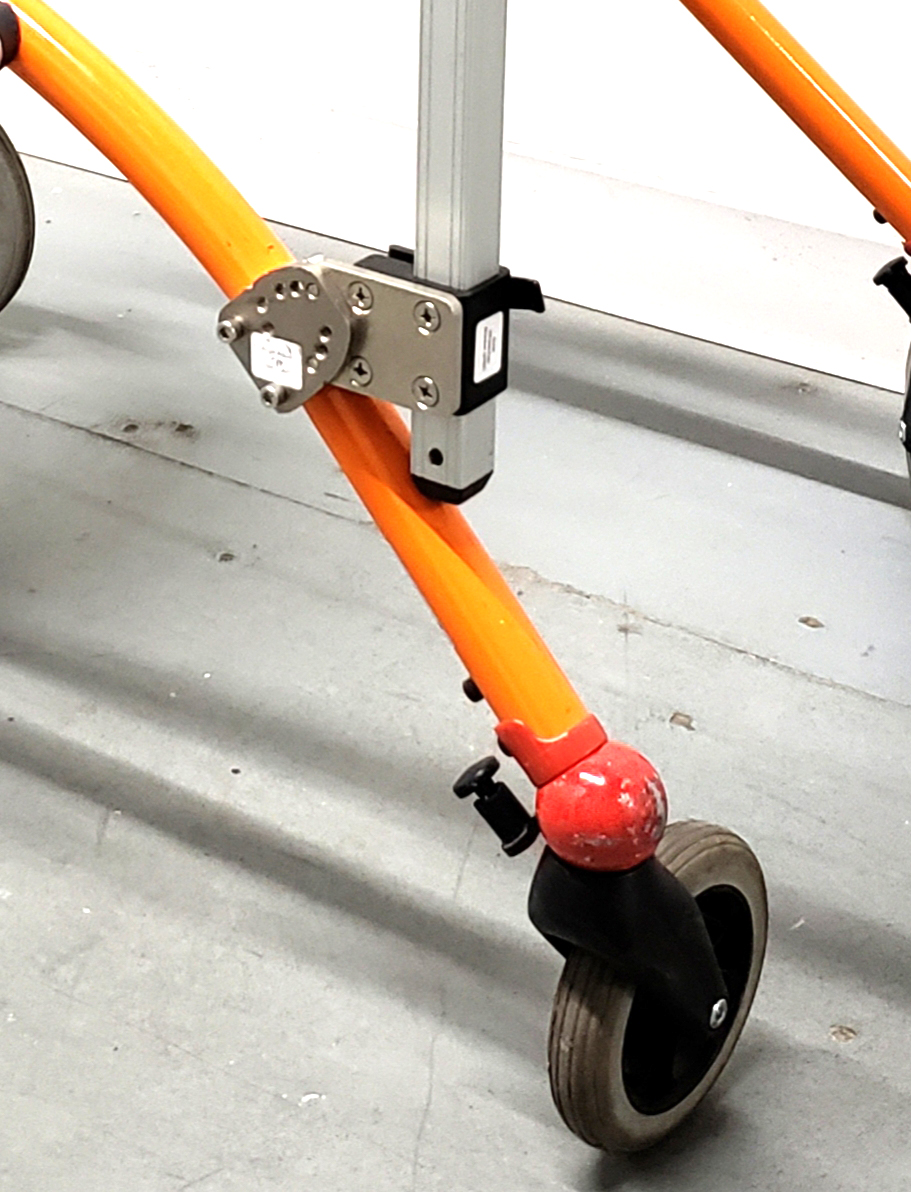

Collar clamps, WC-AAP and WB2 (Wheelchair Bracket)

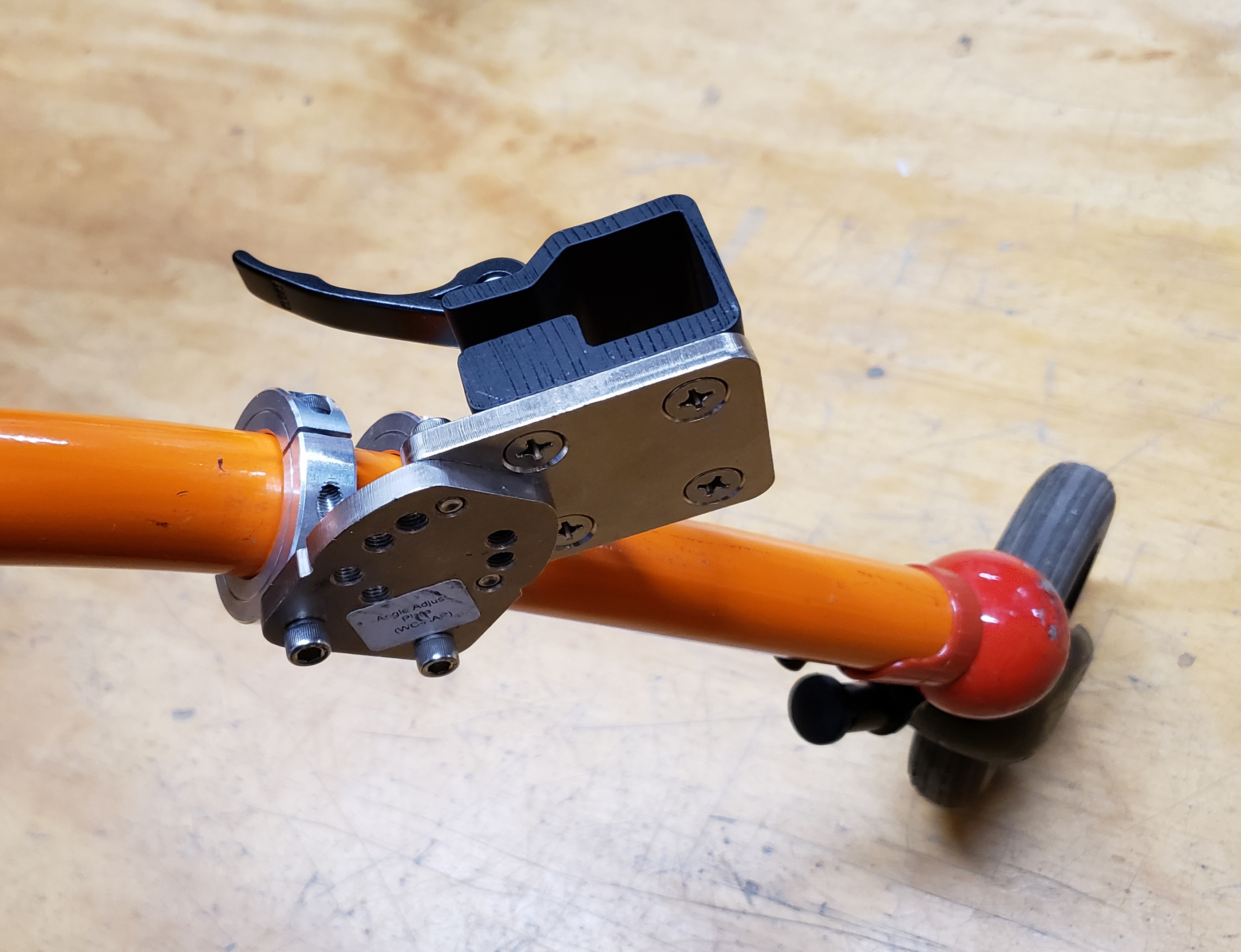

Showing correcting the post angle with the WC-AAP

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

The Crocodile Walker takes a size 30 mm collar clamp set.  You can attach the WC-AAP directly to the collar clamps as shown or you can 'off set' with an AP4 or LAE plate.  The WC-AAP is necessary to correct the angle so the post can be positioned 90 degrees vertically.
