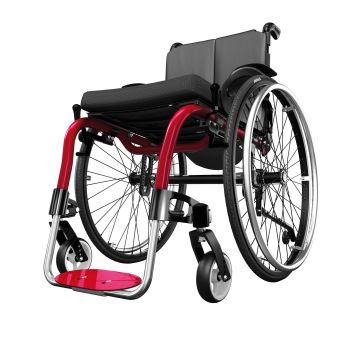

Ventus

Create a bridge clamp using two Collar clamps and an Angle Adjustment Plate or an Adapter Plate. Position Wheelchair Bracket so it does not interfere with propulsion.

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

Mount to downward tube with two Collar Clamps. Create a Bridge Clamp with an Angle Adjustment Plate (AAP), and attach the Solid Wheelchair Bracket to the AAP so the post is nearly vertical.

Use Offsets such as the Adapter Plate 4 or the L-Angle Extension plate as needed to allow for arm movement in propulsion.

Installation support:

Suggested extra parts

Other hardware:

Two Collar Clamps, unknown diameter. Measure tube diameter and order a pair of Collar Clamps.
