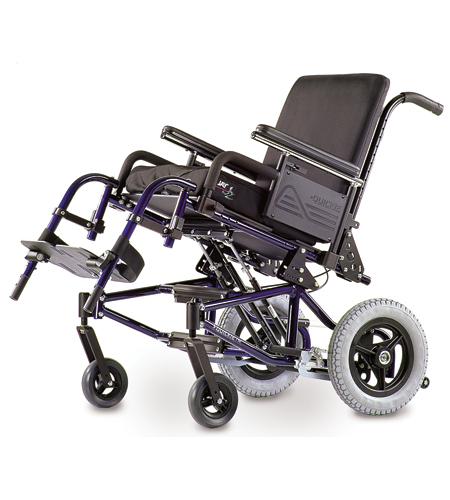

Zippie TS

Quickie TS can be attached to with a Bridge clamp or there are holes in the frame.
Attach bridge clamps to the horizontal tube and vertical tube, bridging them with an Adapter Plate.
Attach an Adapter Plate to a frame components with two bolts and lock nuts.

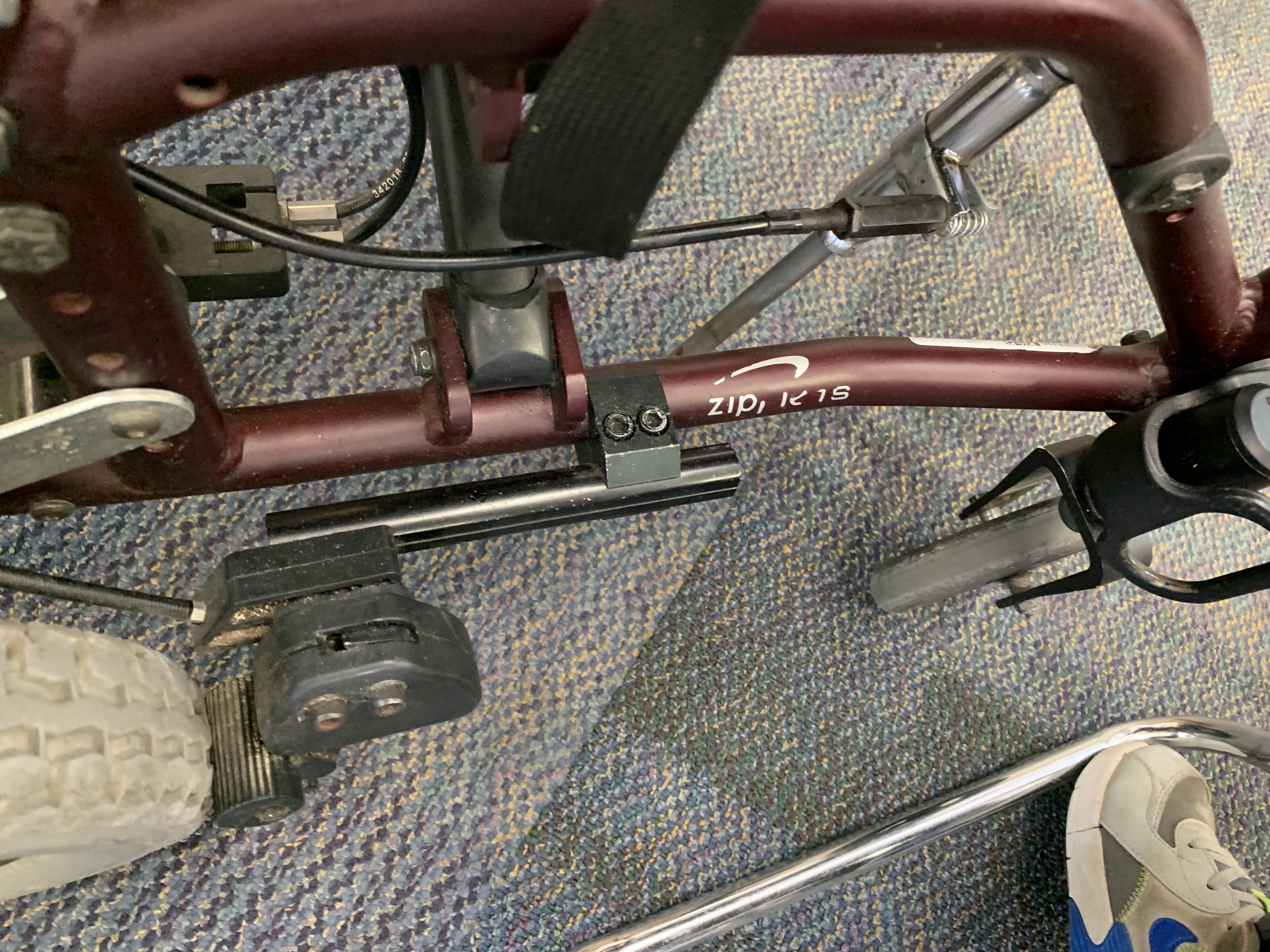

AP4 plate attached to round frame with holes
Use L-Angle Extension plates (WC-LAE) as Offsets
Adapter Plates as Offsets
Quickie TS use 1" bridge clamps

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

Approach 1: Attach an Adapter Plate 4 to the frame's thru holes using bolts and lock nuts.

Use offsets as needed, including L-Angle Extension plates and Adapter Plates.

Recommended mounting hardware:

Solid Wheelchair Bracket (WB2)
Adapter Plate 4 (WC-AP4)
Adapter Plate 2 (WC-AP2)
L-Angled Extension Plate (WC-LAE)
Tube Coved Spacer Kit (WC-COVED-) (WC-Coved-1, WC-Coved-7-8)
Add products to quote

Installation support:

Round Tubes - With Holes
Frame with holes

How to mount:

Approach 2: Attach using a Bridge clamp near the footrest, attaching one to the horizontal tube, and one to the vertical tube. Bridge them with an Adapter Plate.  Use two 1 inch bridge clamps on the vertical and horizontal tubes.

Use offsets as needed to avoid armrests and footrests.   If chair is in permanent tilt position, use WC-AAP (Angle Adjust Plate) to correct the angle of post clamp (WB2) to vertical.

Recommended mounting hardware:

Solid Wheelchair Bracket (WB2)
Bridge clamp (WC-R1B/R7/8B) (WC-R7/8B, WC-R1B, WC-R1B-SET, WC-R7/8B-SET, WC-RMIXED-SET)
Bridge clamp (WC-R1B/R7/8B) (WC-R7/8B, WC-R1B, WC-R1B-SET, WC-R7/8B-SET, WC-RMIXED-SET)
Adapter Plate 4 (WC-AP4)
L-Angled Extension Plate (WC-LAE)
Add products to quote

Installation support:

Round tubes - Bridge Clamps, Round Clamps, and Collar Clamps
