Zippie Voyage

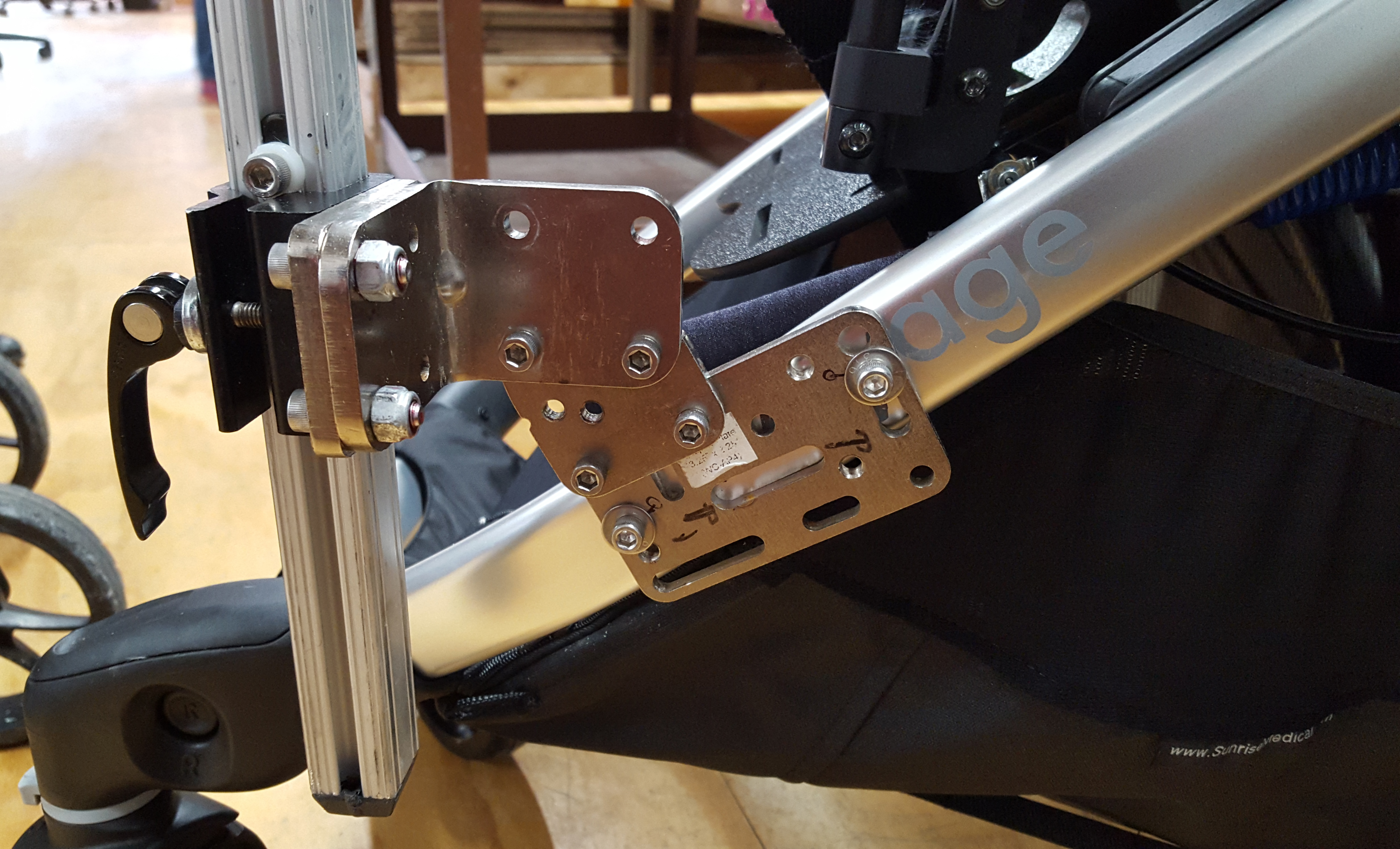

Holes drilled through frame

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

Drill through frame as shown.  Use lock nuts to attach to wheelchair frame.

Suggested extra parts

Manufacturer parts:

Note: this has not been validated

Use the Second Seat Adapters, avaible from the Manufacturer



Drill two 1/4" holes into the exposed sliver upright

Attach the Adapter Plate 4, using a hole and a slot; or attach the L-Angle Extension Plate (drill holes to match the hole spacing)

You will need 2 bolts and lock nuts, long enough to go through the frame and the plate.
