Zippie Zone

Zippy Zone with two Oval Bridge clamps, spanned by an Adapter Plate 2. The L-Angle Extension positions Wheelchair Bracket and post to allow brake actuation.
Zippy Zone:  Adapter Plate 2 attached to the bridge clamps.

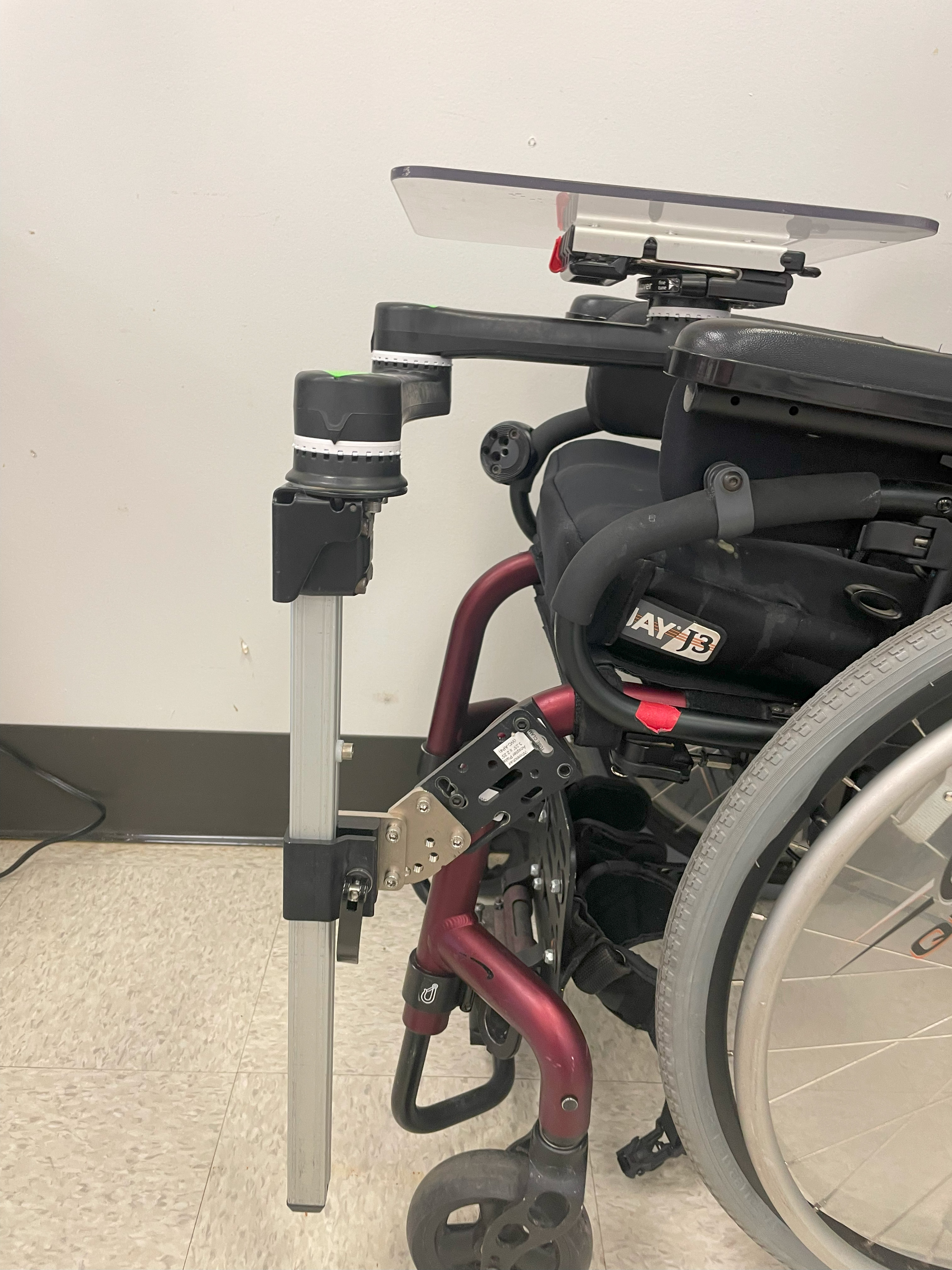

Mount'n Mover with eyegaze device on Zippy Zone.
A tight squeeze: an AP4 plate attaches to the Oval bridge clamps. Wheelchair Bracket is placed forward to allow brake use.

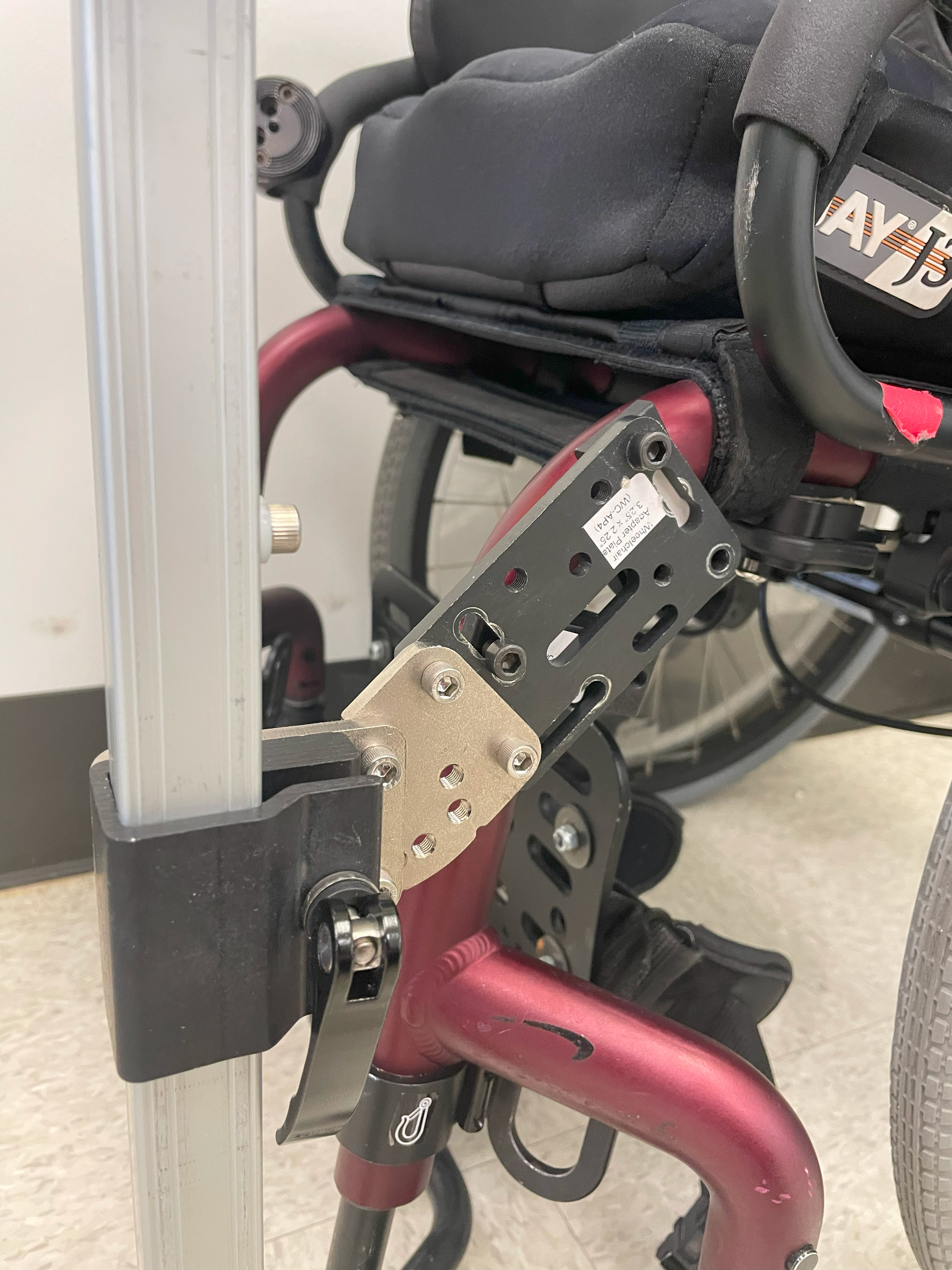

Inside view of bridge clamps and adapter plate attached to oval tube frame.

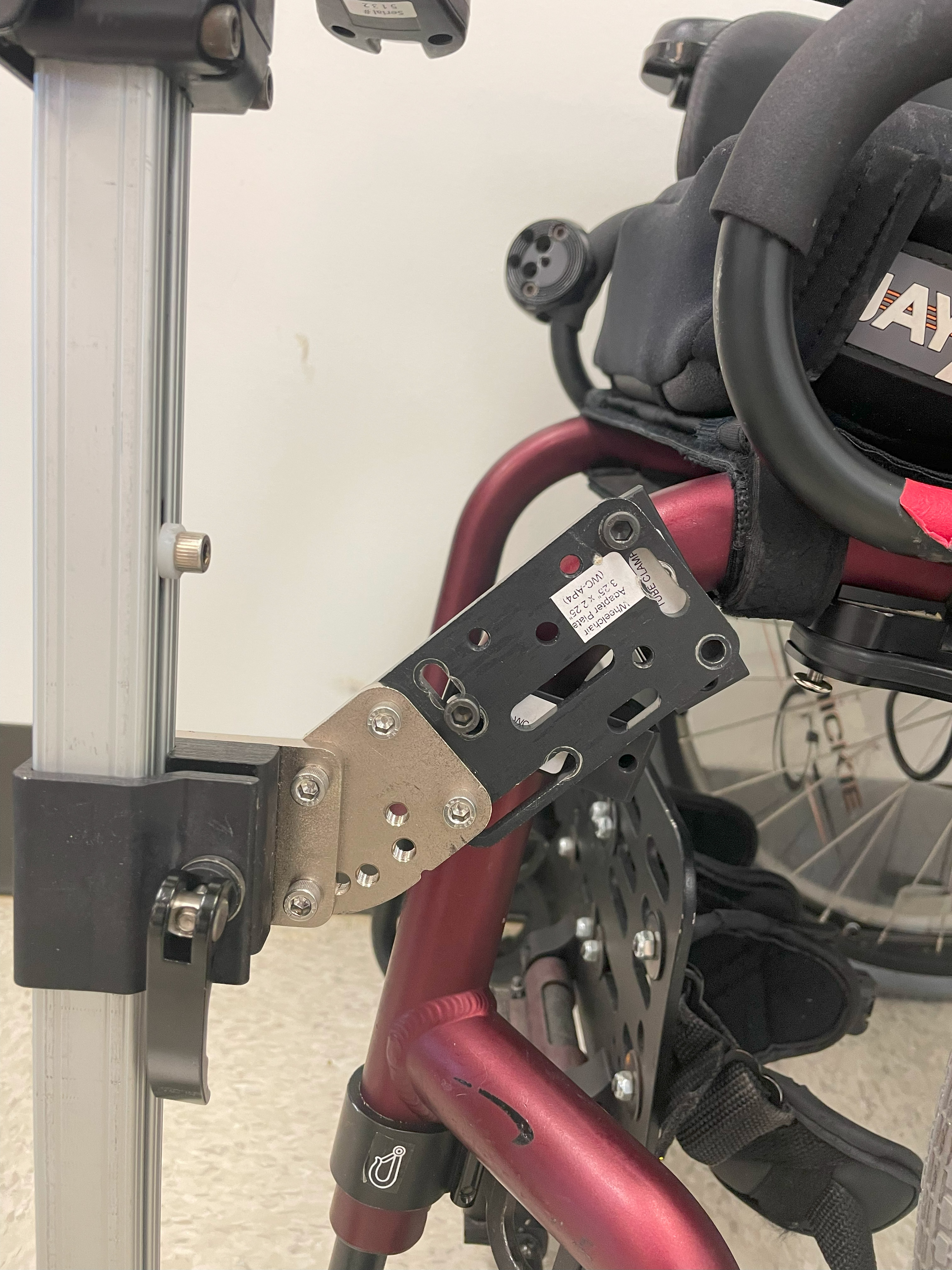

An L-Angle Extension is shown attached to offset/reposition the Wheelchair Bracket.

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

Attach with a Bridge clamp. Combine an Adapter Plate with two Oval tube clamps. Use offsets such as L-Angle Extension plate to position the Wheelchair Bracket to allow brake actuation.

Installation support:
