Puma40

Puma 40 with a tray is shown. Attach using the Sedeo track nuts and an Adapter Plate. Offset it as needed using L-Angle Extension plates.
The Puma 40 uses Sedeo Pro Seating and the track slot uses their M5 track nuts. Use two of these to attach the Adapter Plate 4.
Sedeo track nut

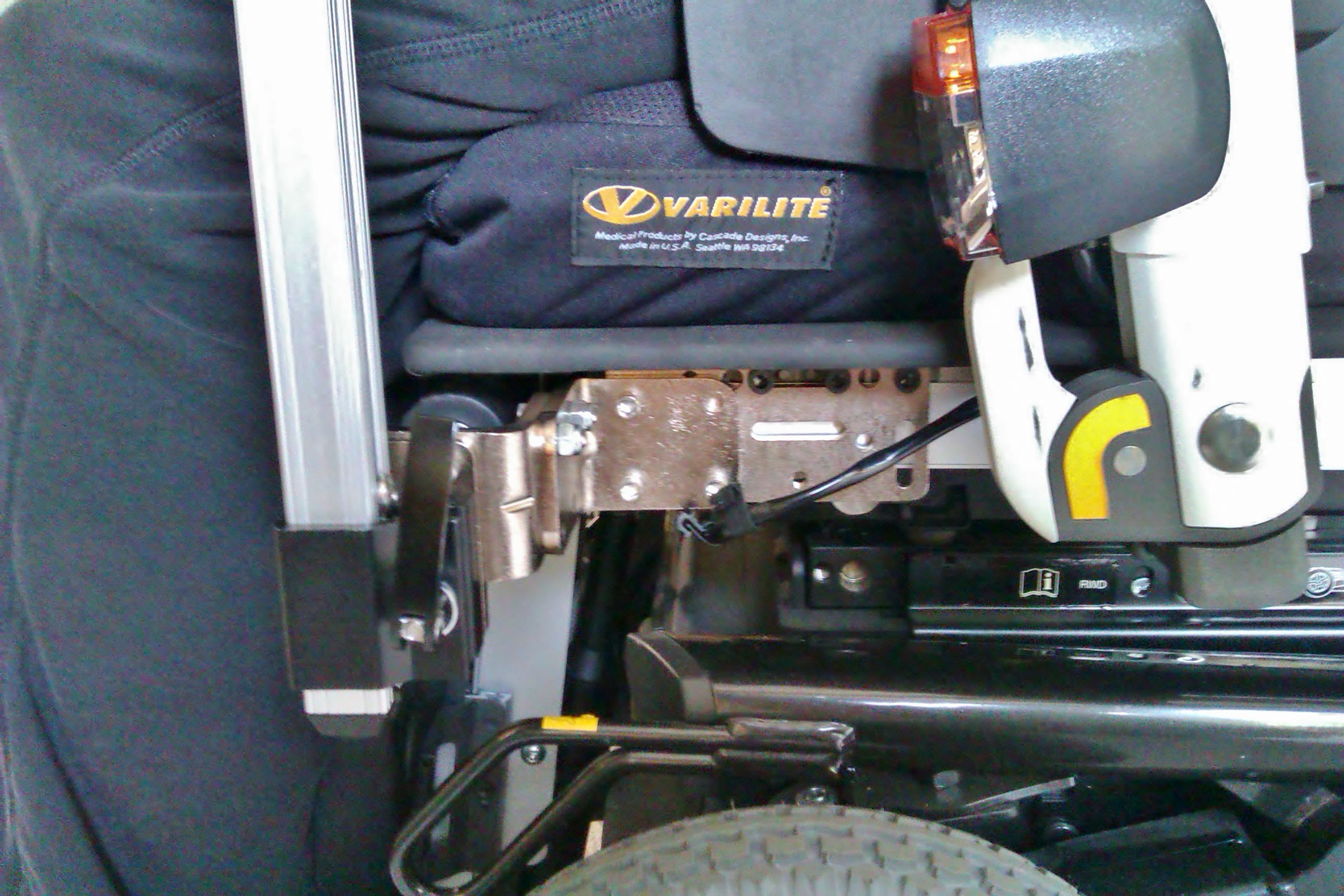

This image shows an Adapter Plate 2 attaching to two track nuts. Two 2 L-angle extension plates position the wheelchair bracket forward and out, useful for avoiding armrests and trays.

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

Attach Adapter plates to the track using Sedeo track nuts. Use an L-angle extension plate to position the wheelchair bracket.

Recommended mounting hardware:

Adapter Plate 4 (WC-AP4)
L-Angled Extension Plate (WC-LAE)
Solid Wheelchair Bracket (WB2)
Add products to quote

Installation support:

Mounting to frames using manufacturer-specific hardware
Slide Track Frame
Suggested extra parts

Manufacturer parts:

Sedeo track nuts (2-3) and M5 bolts
