Van seat

The square tube was solidly attached to the van seat. It had thru holes for an easy and solid attachment.

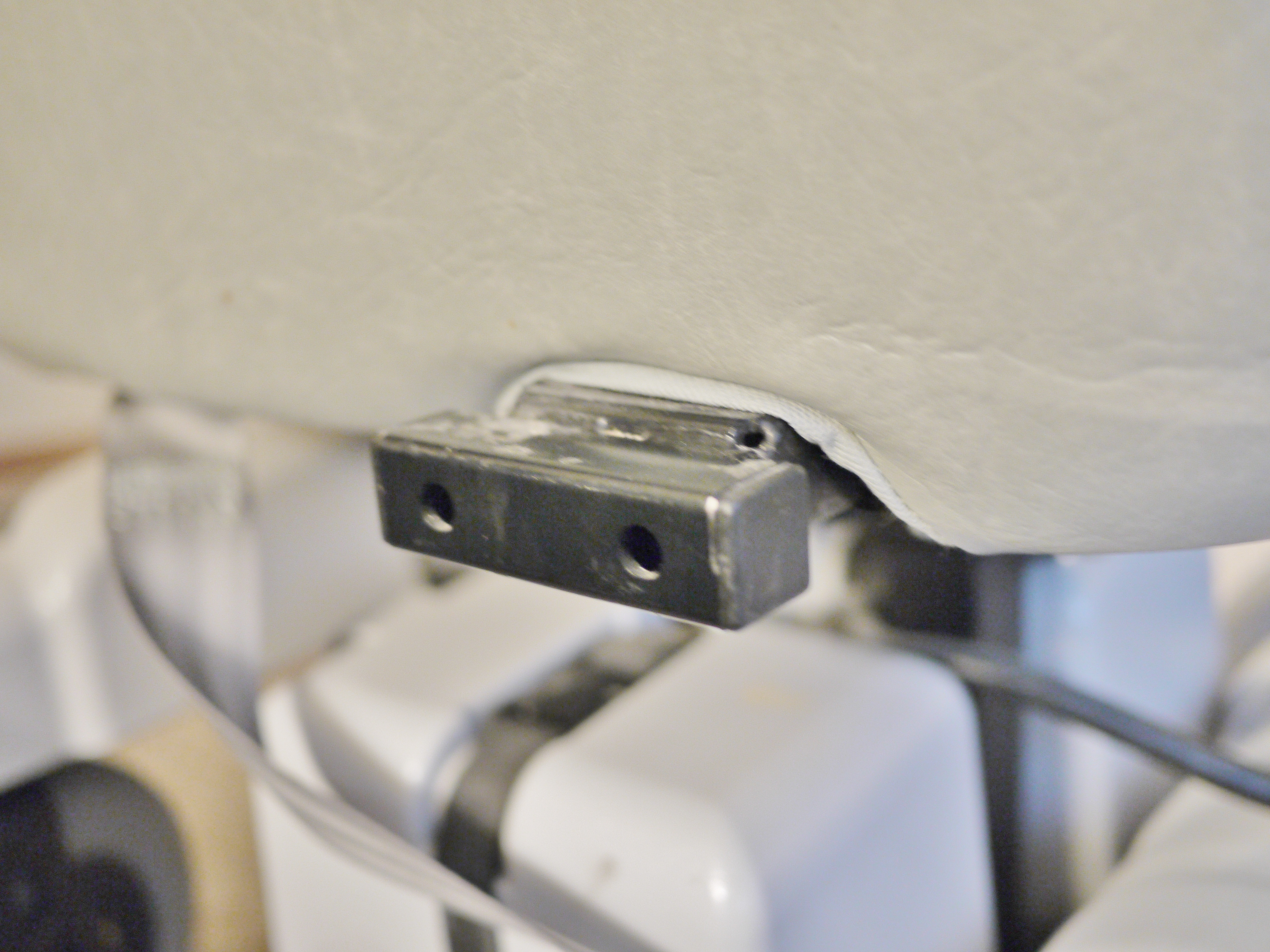

The square tube had thru holes for an easy and solid attachment.

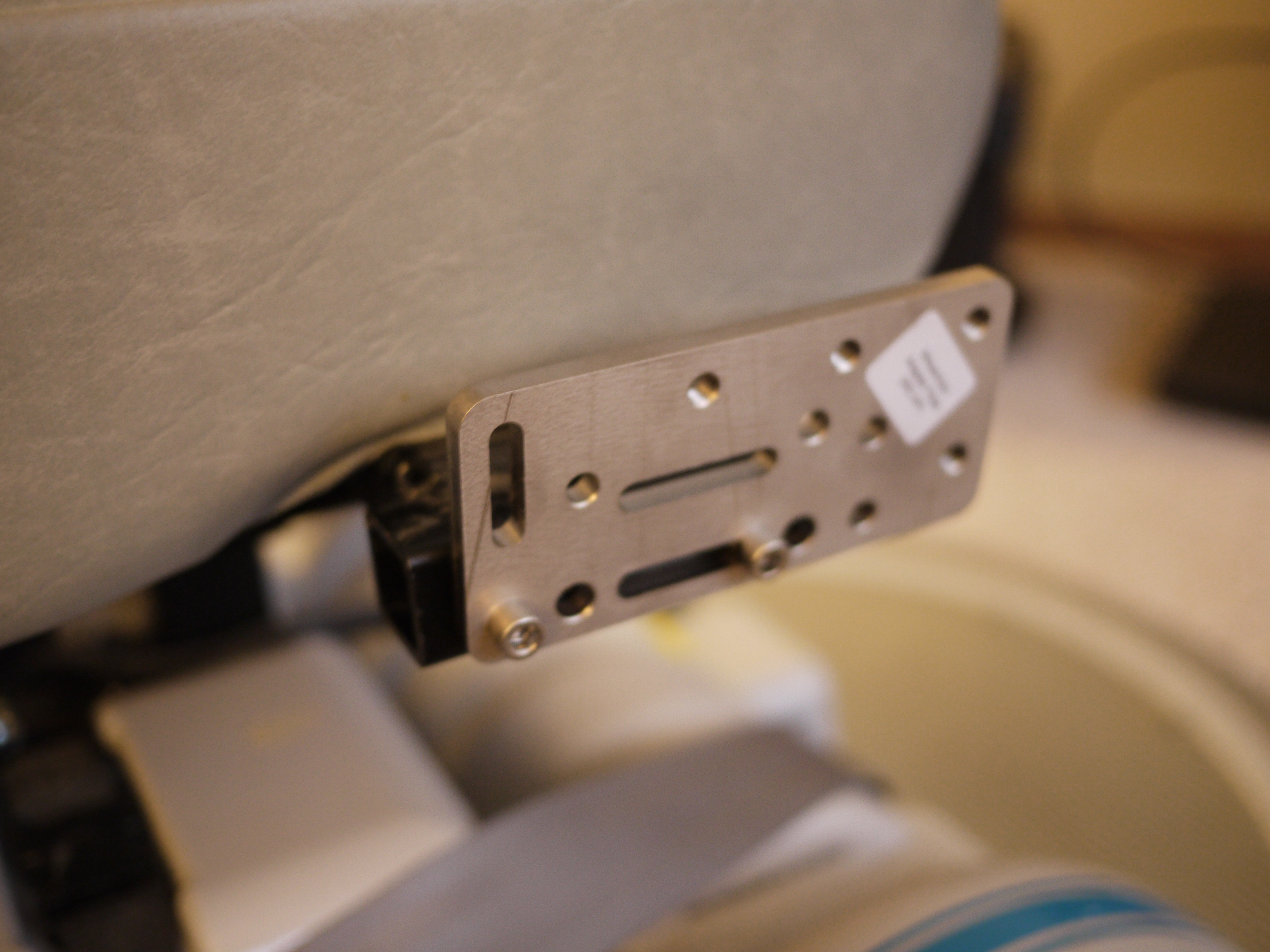

The Adapter Plates have hole and slot combinations that accommodate different hole spacing. The Adapter Plate 2 is shown attached using bolts long enough to accommodate the Adapter plate, tube and lock nut.

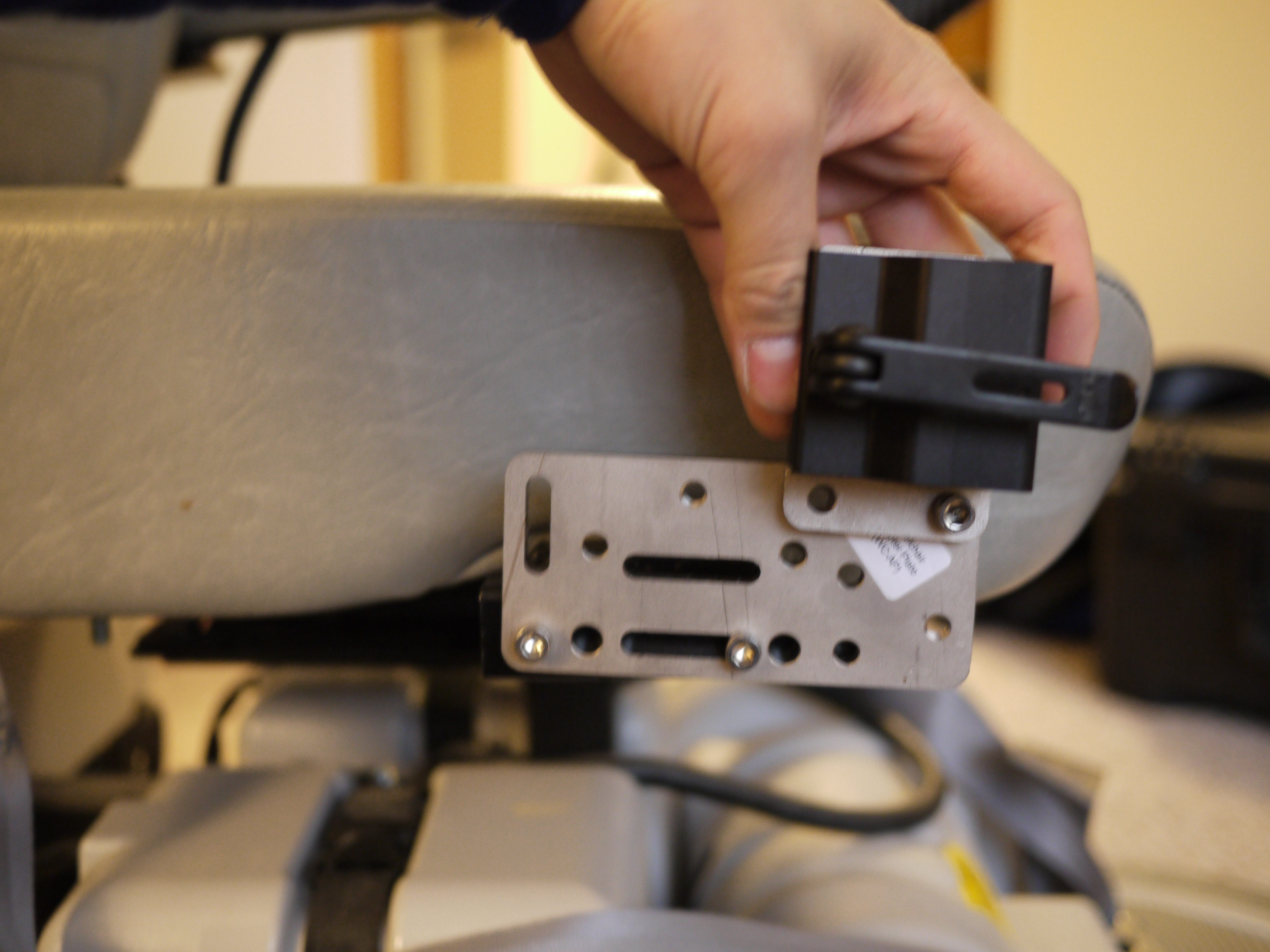

The Solid Wheelchair bracket then attaches to the Adapter Plate, using any of the threaded holes.

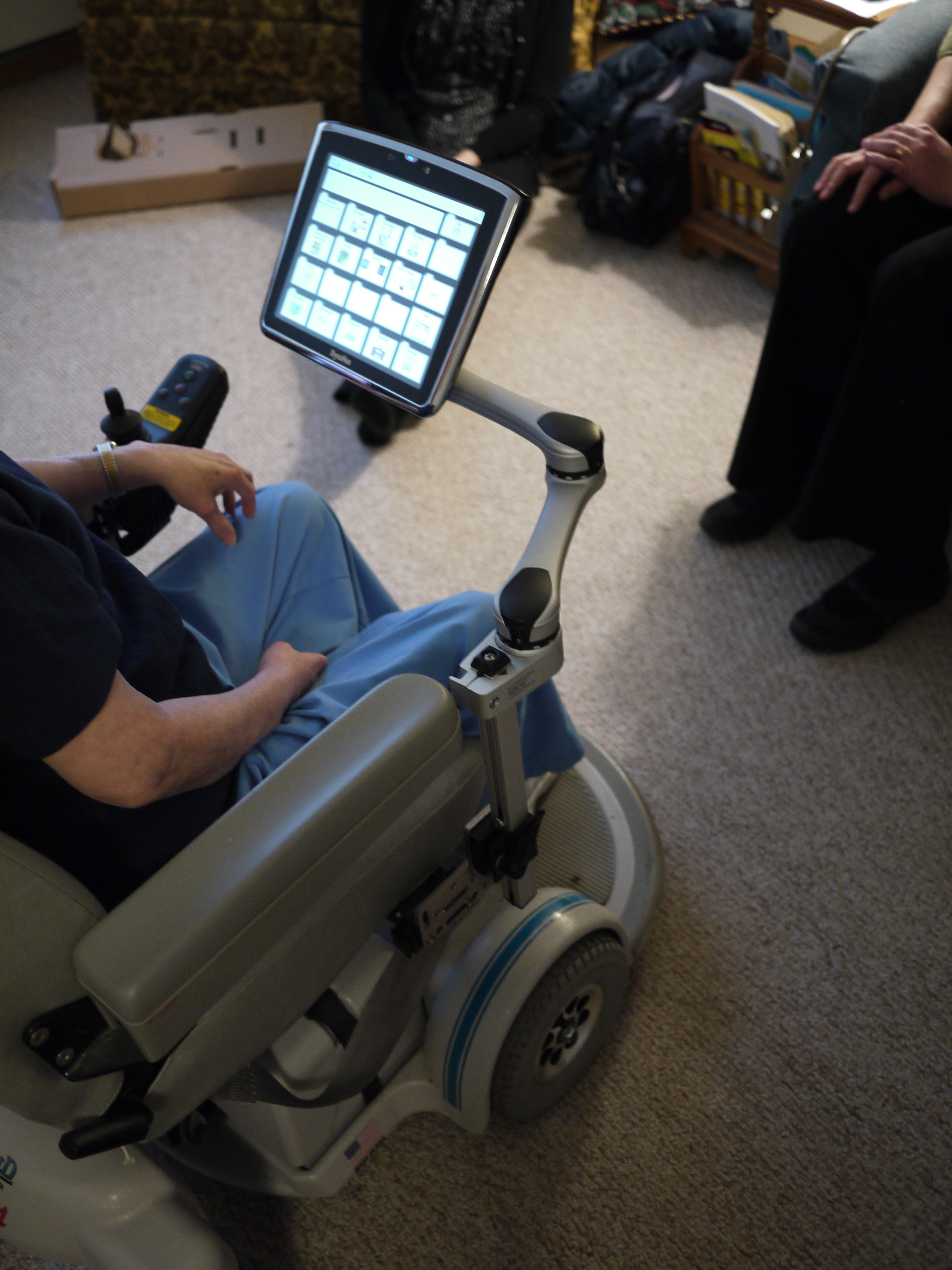

The Wheelchair Bracket is positioned so the post is in front of the armrest for easy insertion and removal. A Dual arm is attached, and he's ready to talk'n roll!

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

Attach Adapter plate to the square tube with holes

Recommended mounting hardware:

Adapter Plate 2 (WC-AP2)
Solid Wheelchair Bracket (WB2)
Add products to quote

Installation support:

Frame with holes
Suggested extra parts

Other hardware:

1/4" bolt x 1.5" long with lock nuts (2)
