Storm (with track)

Insert the T-Nut in the track.
Approach 1: Use an Adapter Plate to move the attachment points for the Wheelchair Bracket in front of the armrest, and/or above the footrests.
Approach 2: Attach an Adapter Plate so it extends upward vertically. This enables the additional hardware to move up and not interfere with the footrest removal.
Use an L-Angle Extension to move around the Armrest tube.
Front face of L-Angle extension plate offers many options for Wheelchair Bracket attachment.

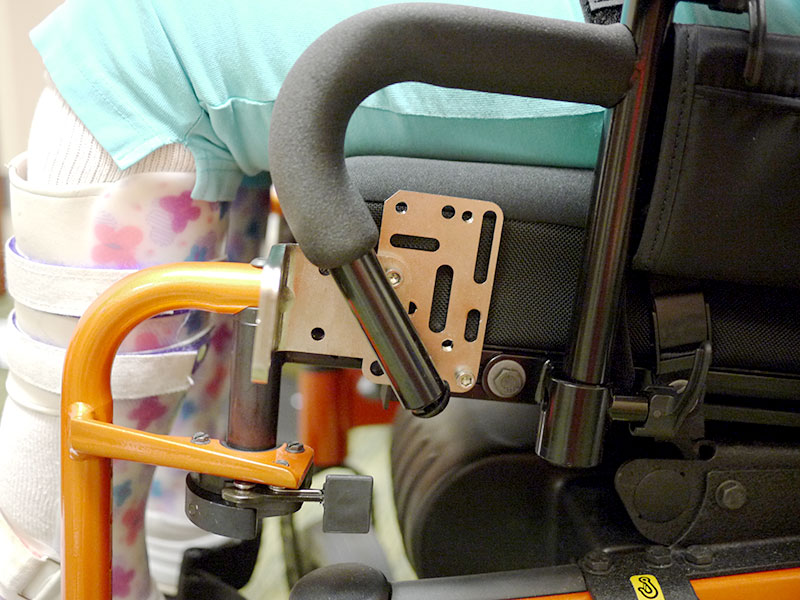

The Wheelchair Bracket is just in front of the Armrest Bracket. The clamp lever is to the inside, where it is somewhat protected. If a person wanted it further forward, an Adapter Plate 2 could have been attached to the Adapter Plate 4 before the L-AE.

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

Remove end cap to track and adjust internal hardware to allow T-nut to pass by. Insert T-nut. Attach the Adapter Plate 2 to move forward of armrest tube. Use an L-Angle Extension plate if necessary. If the person typically sits at an angle when they drive, consider using an Angle Adjustment Plate to set the post to vertical.

Installation support:

How to mount:

Remove end cap to track and adjust internal hardware to allow T-nut to pass by. Insert T-nut. Attach the Adapter Plate 4 to move forward of armrest tube. Use an L-Angle Extension plate if necessary. If the person typically sits at an angle when they drive, consider using an Angle Adjustment Plate to set the post to vertical.

Installation support:
