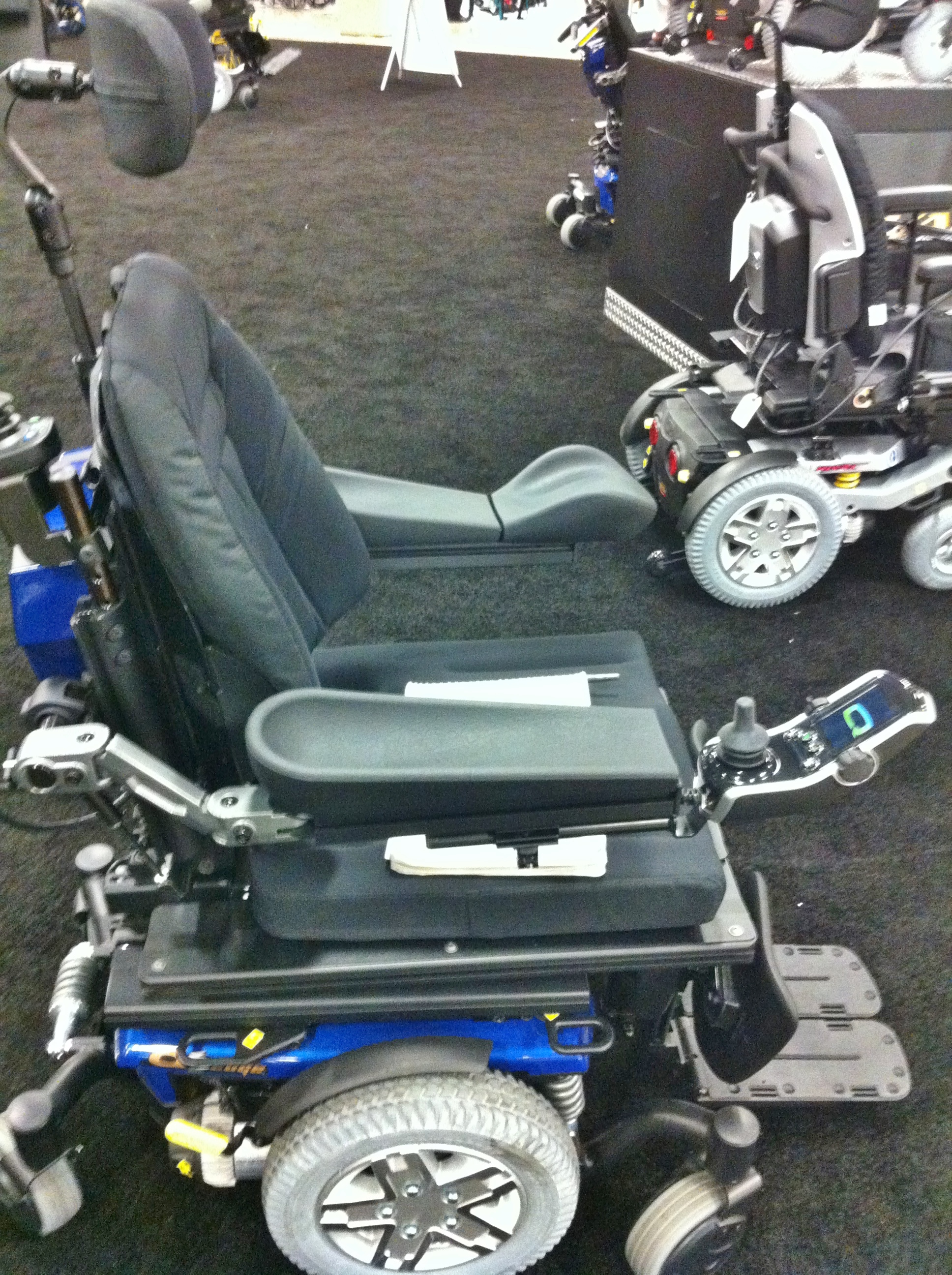

Q6 Edge

The T-nut attaches easily to the Quantum Q6 Edge. There are T-nut slots in the side of the armrest, beneath the armrest, along the seat track and in the back uprights.

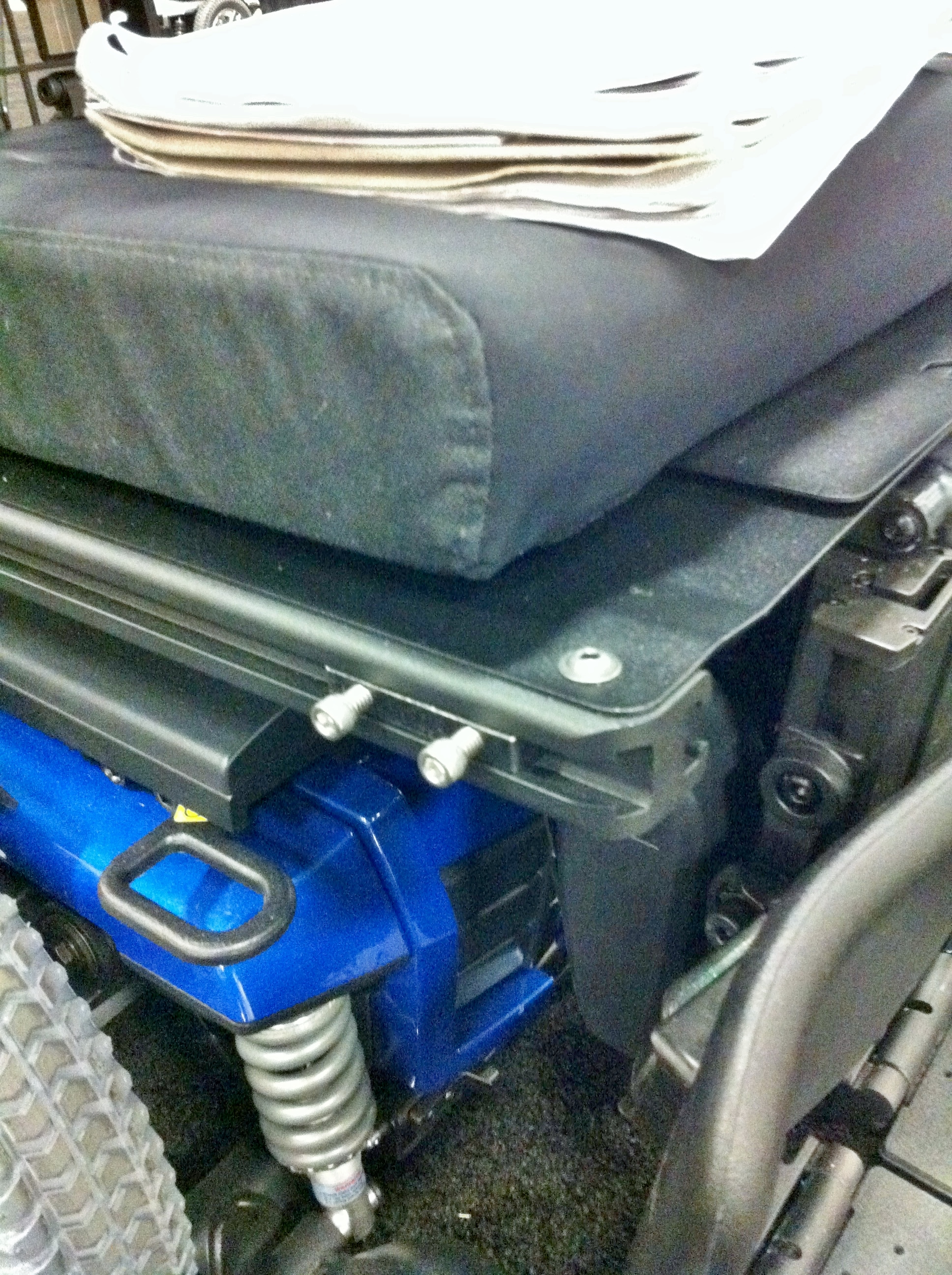

Q6 Edge with T-nut in track

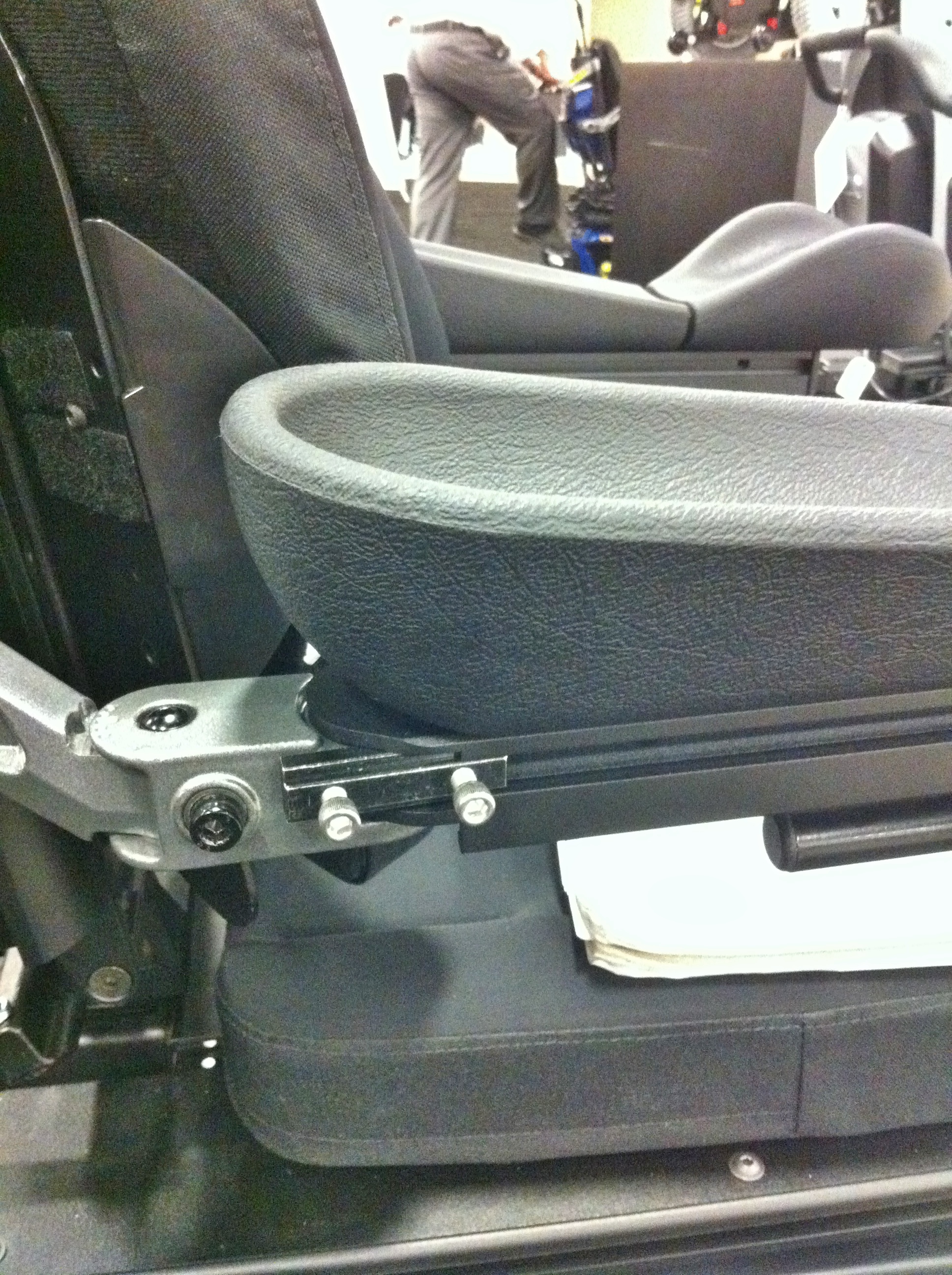

Q6 Edge showing side of armrest

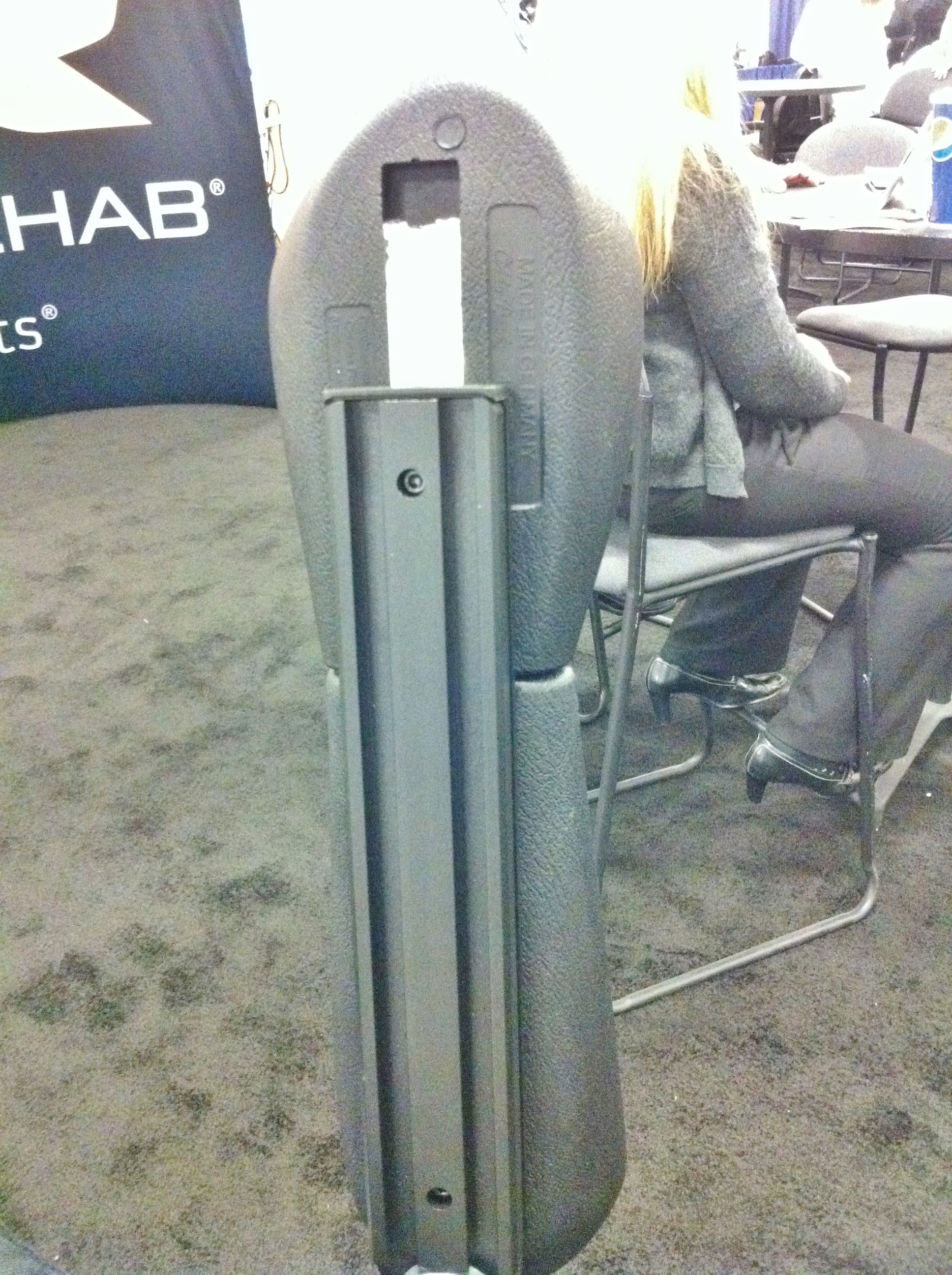

Underneath the armrest

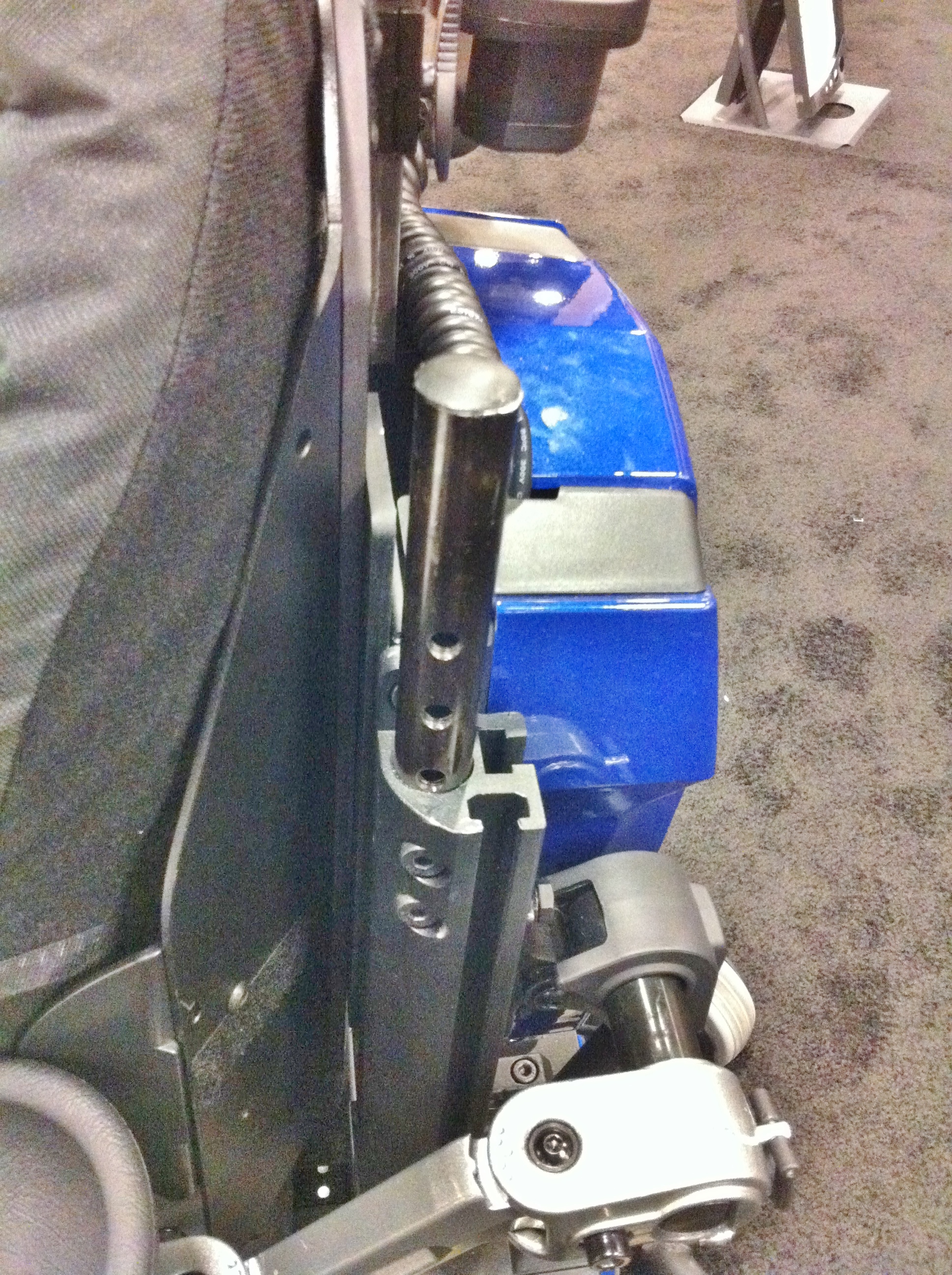

Q6 Edge back track

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

Attach using a T-nut in the slide track in the seat, or the armrest. The armrest has slots on the side, or beneath it.

Use the Adapter Plate and L-Angle Extension to move out from under the armrest and to position the Wheelchair Bracket as needed.

Installation support:
