QM710

The QM710 has a dovetail slide track.
Slide two dovetail nuts in the slide track
Dovetail nuts in the dovetail track. Align with holes in AP2 plate.
Place washers over the nuts, between the track and the Adapter Plate.
Attach the Adapter Plate using the Dovetail nuts. Attach the Wheelchair Bracket to the threaded holes in the plate.
QM710 with ASAP seating _see "Approach 2"
QM-710 with T-Nut track

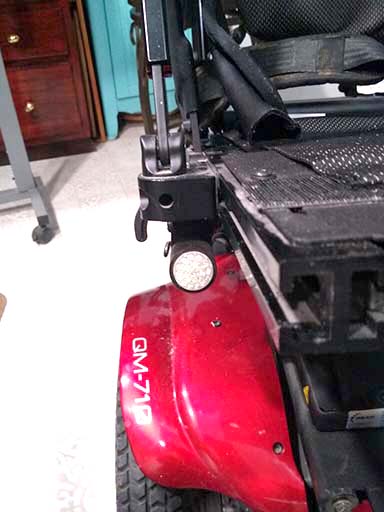

close up of t-nut track and attachment hardware
Mounted to the T-Nut track

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

The Quickie QM-710 can have a dovetail track, a T-nut track, or a tube with through holes, it depends on the seating.

Attach an Adapter Plate 4, using Dovetail nuts in the slide track (for Sedeo Ergo and Captain Seating).

* NOTE:  If your QM710 has ASAP Seating then you will need 1" Coved Spacer Set to attach the Adapter Plate 4 to the 1" diameter tubing seat rail (see picture).



***The Ultra Low Maxx Seating  from Motion Concepts has the T-Nut track**.

Recommended mounting hardware:

Solid Wheelchair Bracket (WB2)
Adapter Plate 4 (WC-AP4)
L-Angled Extension Plate (WC-LAE)
Dove Tail Nut (WC-DOVETAIL-NUT) (WC-DoveTail-Nut)
Tube Coved Spacer Kit (WC-COVED-) (WC-Coved-1, WC-Coved-7-8)
T-nut (WC-TN)
Add products to quote

Installation support:

Slide Track Frame
Round Tubes - With Holes

How to mount:

If the QM710 has ASAP Seating there will be 1" diameter tubing along the bottom of the seat.

Using the through holes in the 1" diameter tubing...attach the adapter plate using the 1" coved spacer set.  Then attach the WB2 (post clamp) to the adapter plate.  Offset the WB2  with an WC-LAE plate if needed to get around the armrest.

Recommended mounting hardware:

Tube Coved Spacer Kit (WC-COVED-) (WC-Coved-1, WC-Coved-7-8)
Adapter Plate 4 (WC-AP4)
L-Angled Extension Plate (WC-LAE)
Solid Wheelchair Bracket (WB2)
T-nut (WC-TN)
